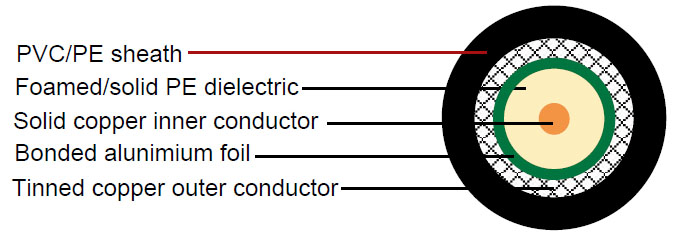

Construction :

• Inner conductor	Solid copper	Φ3.61 mm
  Dielectric	Foam /Solid PE	Φ9.40 mm
  Shield	Bonded aluminium foil	Φ9.55 mm
  Outer conductor	Tinned copper braid	Φ10.3 mm
  Sheath	PVC/PE	Φ12.7 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	79.7 pF/m
  Velocity of propagation	80%
  Insulation resistance	>5000 Mohm.Km
  Inner conductor resistance	24.94 Ohm/Km
  Outer conductor resistance	16.08 Ohm/Km
  Operating temperature range	-40°C - +85 °C
  Min.bending radius	25 mm

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Max. Attenuation(dB/100ft)
  30	6.5	2.0
  50	8.4	2.6
  150	14.6	4.5
  220	17.7	5.4
  450	25.5	7.8
  900	36.5	11.1
  1500	47.7	14.5
  1800	52.5	16.0
  2000	55.4	16.9
  2500	62.4	19.0
  3000	67.5	20.6
  5800	93.0	28.3
